No Waveform Glow

v1.1.0

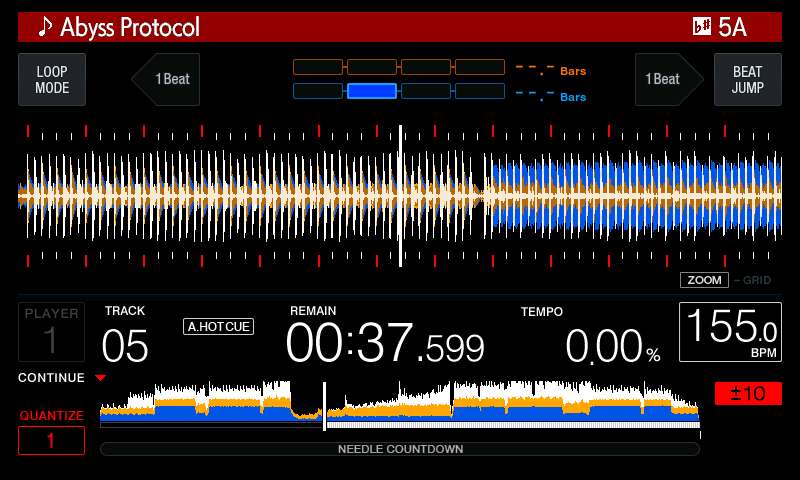

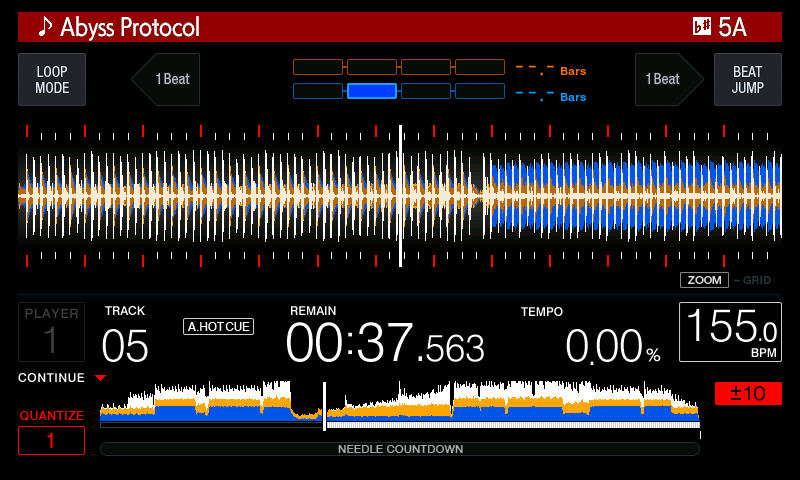

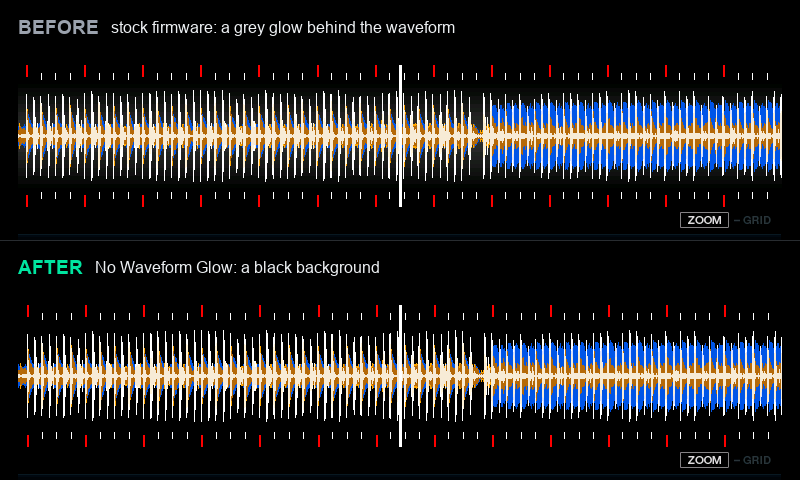

A plain black background behind the scrolling waveform. Stock firmware paints a soft band behind it, grey with the RGB and 3BAND waveform and blue with BLUE, brightest at the centre line; this mod leaves it black, like the CDJ-3000. Waveforms, beat grid, loop, cue and memory markers and the overview are unchanged.

Player
Pioneer CDJ-2000NXS2, firmware 1.87
On the deck
UTILITY → WAVEFORM GLOW: OFF (black background) / ON (the stock glow); OFF until changed, saved by Display Performance (panel-flags bit 8)
Needs
Nothing else: works on its own.
Known limits
  • The Light GUI type paints its own white waveform background, so WAVEFORM GLOW changes nothing under it.

Changelog

  1. v1.1.0Latest
    • UTILITY > WAVEFORM GLOW: OFF (the black background, the start-up value) or ON (the stock glow), switched at once; saved (a restart keeps the last choice).
  2. v1.0.1
    • Tested on a deck: marked stable. The firmware is identical to 1.0.0.
  3. v1.0.0
    • First release (beta, emulator-tested): black background behind the detail waveform in BLUE, RGB and 3BAND. GUI only: no MAIN flash used.
