Dual Deck

v0.3.7

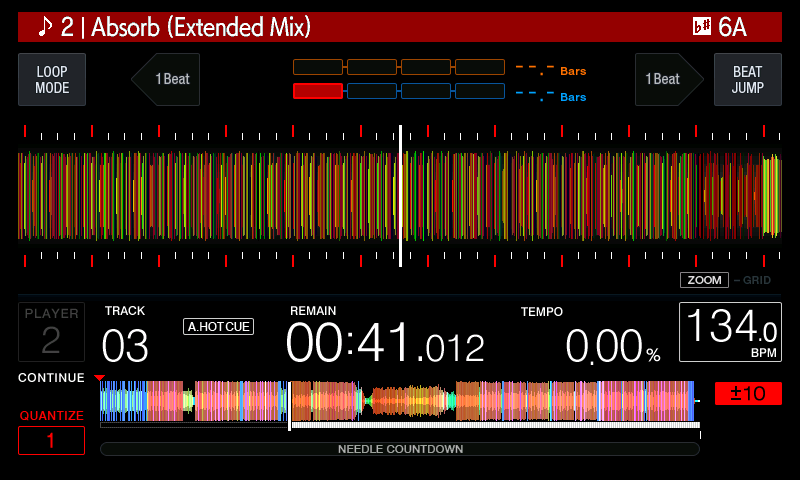

Two decks on one CDJ: deck 1 plays on the RCA outputs as usual, deck 2 on the DIGITAL OUT (coaxial). Tap the PLAYER box on the waveform screen to switch which deck the controls, screen and LEDs follow; a track you load goes to the deck in focus. Deck 2 has its own waveforms, title, cues, loops, hot cues, tempo, MASTER TEMPO, jog (VINYL or CDJ), SYNC and MASTER, and plays WAV/AIFF, MP3 and AAC (M4A). While deck 2 has a track, both decks' detail waveforms are stacked (deck 1 on top, deck 2 below), with their beat grids at the same spacing, so you can beatmatch by eye. UTILITY > DUAL DECK turns it off and on.

Player
Pioneer CDJ-2000NXS2, firmware 1.87
On the deck
UTILITY → DUAL DECK: OFF / ON; in the all-mods build (with Key Shift) OFF until switched on, saved by Display Performance (panel-flags bit 12)
Needs
Nothing else: works on its own.
Known limits
  • Beta: tested on a deck during development (two rounds of fixes); the fixes in this version are tested in the CDJ-2000NXS2 emulator and in the code interpreter, not yet on a deck.
  • Deck 2 needs a mixer channel with a coaxial digital input.
  • Deck 2 plays WAV/AIFF, MP3 and AAC (M4A); no FLAC or ALAC.
  • Deck-2 cues are not saved to the USB stick (no MEMORY / DELETE on deck 2); CALL steps through the track's rekordbox memory cues.
  • Both outputs run at the deck's output rate; deck 2 is resampled to it.
  • The tempo slider is shared: after a switch, a deck keeps its tempo until the slider passes that deck's own position (as stock after SYNC is released).
  • The other deck's lane shows its waveform and beat grid, no cue, loop or hot cue marks.
  • Uses flash past Pioneer's MAIN slot (the full MAIN area, proven on a deck). The Stock firmware build returns the deck to stock as usual.

Changelog

  1. v0.3.7Latest

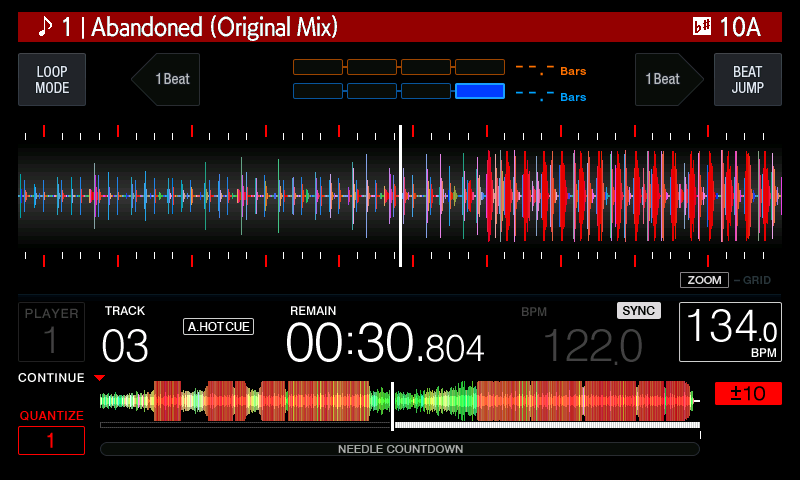

    • SYNC on deck 2 holds a steady pitch: it keeps the tempo match and pulls the beats together gently (at most 0.39 %) instead of re-aiming every few milliseconds, and it only jumps after deck 1 itself jumped (a hot cue, a loop, a beat jump). A deck switch closes the BEAT LOOP and BEAT JUMP strips instead of keeping one per deck.
  2. v0.3.6
    • An empty deck 2 no longer shows deck 1's overview waveform (the stock code re-sent it about every 2 seconds); with deck 2 loaded, deck 1's overview no longer flashes up between deck 2's.
    • Deck 2's BEAT LOOP pads and 4-beat loop start at the nearest beat with QUANTIZE on, as deck 1's (pressed just before a beat they started a beat early).
    • Deck 2 takes beat jumps of any size from the CDJ-3000 port's BEAT JUMP pads.
  3. v0.3.5
    • Switching the focus between deck 1 and deck 2 updates the screen right away again (BROWSE, SHORT CUT and the deck 2 title came up one step late): the lane position goes to the screen every 4th cycle only while the other deck plays.
  4. v0.3.4
    • A very long loop (near 83 s) no longer stops deck 2.
    • Deck 2 waits up to 3 s for the track's rekordbox hot and memory cues (it gave up after about a second), and CUE/LOOP CALL only uses memory cues the track has.
    • Holding SEARCH backwards on deck 2 stops at the track start instead of stuttering there.
    • Hot loops without a rekordbox colour show orange in the other deck's waveform lane, as on the pads.
    • After DUAL DECK is switched off and on, an empty deck 2 no longer lights RELOOP or the hot-cue pads of its previous track.
  5. v0.3.3
    • With both decks loaded, the other deck's waveform lane shows the loop it plays as the orange section, as on the deck in focus (it showed only the waveform and beat grid).
    • The other deck's hot cues show in its lane too: a line and a flag in each cue's colour.
    • KEY SHIFT on deck 2 hits the exact pitch: it was up to 2 cents flat, now within 0.02 cents.
  6. v0.3.2
    • Deck 2: loops longer than 32 beats keep playing (deck 2 now holds 95 s of audio, so a 64-beat loop fits down to about 45 BPM; longer manual loops are shortened to that length instead of freezing the deck). SEARCH works like stock: short chunks at normal speed with jumps between them, and turning the jog while holding SEARCH searches in the jog's direction, faster the faster it turns (it was a plain 3x; deck 2 still searches somewhat slower than deck 1). KEY SHIFT shifts deck 2 too.
    • Deck 2 loads the track's rekordbox hot cues (from USB, SD or over LINK); it never got them before, so its pads set new hot cues instead of recalling the stick's.
    • Deck 2: CUE/LOOP CALL steps to the previous or next memory cue when no loop is playing, as on deck 1 (it only halved or doubled a loop); while a loop plays it still halves or doubles it.
  7. v0.3.1
    • Deck 2's jog does backspins like deck 1: in VINYL, a platter let go while it still spins faster than playback keeps the record following it, then playback carries on.
    • Deck 2 scratches as fast as stock (up to about 8x; it stopped at 4x).
    • The jog display's pointer follows deck 2 also when deck 1 has no track (it stayed blank).
  8. v0.3.0
    • Dual Deck starts OFF (one deck) until you switch UTILITY > DUAL DECK on; saved (a restart keeps the last choice).
  9. v0.2.1
    • Fixes: an empty deck 2 no longer shows deck 1's overview, end-of-track blink or second needle (the overview flickered with Display Performance); the jog display's pointer and cue marker follow deck 2; deck 2's loops open the touch loop strip and its pads set a loop of that length; scratching back in a loop keeps the playhead inside the loop.
  10. v0.2.0
    • Beta.
    • Both decks' detail waveforms stacked while deck 2 has a track: deck 1 on top, deck 2 below, each with its beat grid at the same spacing (beatmatched, the grids line up across the screen).
    • Loads follow the focus: the PLAYER box switches to deck 2 even while it is empty, and a track loaded from rekordbox, LINK, USB or SD goes to the deck in focus.
    • UTILITY > DUAL DECK: OFF / ON (saved). OFF unloads deck 2 and gives the deck back as stock.
    • Faster deck switch.
    • SYNC holds the beats as tight as two stock players (both decks' positions from one audio callback, the stock follower law), with a steady BPM display.
    • Deck 2's jog works as stock: nudge on the outer ring, scratch on the platter in VINYL mode, the VINYL/CDJ mode and its icon.
    • Tempo slider pick-up across switches: no jump, and never the other deck's tempo.
    • Fixes from the deck tests: deck 2 playing in reverse; deck 1 glitching when deck 2 loaded; SEARCH on deck 2 stopping deck 1 (EMERGENCY LOOP); deck 1's loop shown on deck 2; TRACK SEARCH changing deck 1's track; deck 2's waveform stretching with deck 1's tempo or jog, and pausing on deck 1's CUE.
    • Combines with Gate Cue, 3-Band Waveform, Search Beat Jump, No Waveform Glow, Beat Numbers and BPM Decimals.
  11. v0.1.0
    • First release (experimental, emulator-tested): deck 2 on the DIGITAL OUT with its own transport, controls, waveforms, title bar, PLAYER number, LEDs, MASTER TEMPO, SYNC, MASTER and rekordbox hot cues; WAV/AIFF, MP3 and AAC.
