All CDJ-2000NXS modsLNNRT Mods · CDJ-2000NXS

Phase Meter Type 2

v0.3.2Experimental

Native NXS2-style time lanes enabled by default; Utility TYPE1/TYPE2 selection, owned journal and scoped Pro DJ Link emulator evidence.

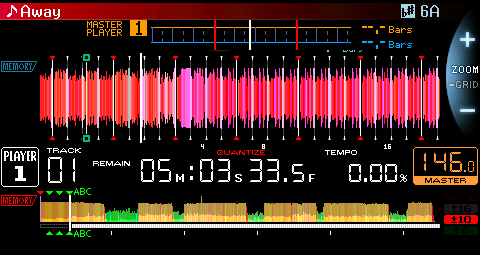

Native v13 six-mod NXS1 fixture: orange/blue Type 2 lanes above the 3-Band waveform; unavailable stock counters remain --.-.
Player
Pioneer CDJ-2000NXS, firmware 1.44
On the deck
UTILITY → PHASE METER
Needs
Nothing else: works on its own.
Known limits
  • Local0% and native analogue±1.25% pitch are exercised. Local scaling uses displayed hundredths-percent precision and150Hz grid time, not the newer model raw Q20 selector. Full rate/Slip/sync precision parity is not claimed.
  • No real NXS2/CDJ-3000 firmware run, physical LAN, mixed-model discovery/handoff or hardware/updater qualification. Newer-model names and tempo cases are synthetic Ethernet fixtures.
  • Remote timing estimates four current beats; variable-tempo remote bars, scratch/reverse/Slip, paused-master extrapolation and complete newer-model fallback parity remain open.
  • Ordered internal frame pairs add latency. Decoder state and displayed frames are asynchronous; raster capture attempts and unmatched snapshots are retained. Accelerated fixture feeding does not qualify real cadence or latency.
  • Incomplete local boundary bars, stale/unknown master data, players5/6 and out-of-range tempo draw no moving ticks. Stock unavailable counters stay --.-.
  • Owned journal is per local medium. SD, rapid swaps, failing/read-only media and physical power-loss recovery remain unqualified.
  • Synthetic silent fixture audio; audio fidelity and worst-case stack/timing bounds are unqualified. Earlier broad BLUE/RGB/Browse/credit evidence belongs to the preserved base identities.
  • Standalone v13 and selected six-mod/theme candidates have exact local native evidence. Other recipes have guarded static/browser parity only; no individual native interaction qualification.
  • Fresh v13 captured-peer replay did not populate the selected-master cache; earlier Link evidence stays pinned to older candidates. No new v13 Link qualification is claimed.
Build with Phase Meter Type 2 Install guide

Changelog

  1. v0.3.2Latest
    • Enable TYPE 2 by default when no saved preference exists; preserve explicit Utility choices.
  2. v0.3.1
    • Publish the guarded Renesas ABI build with Utility selection and integrated mod/theme combinations.
